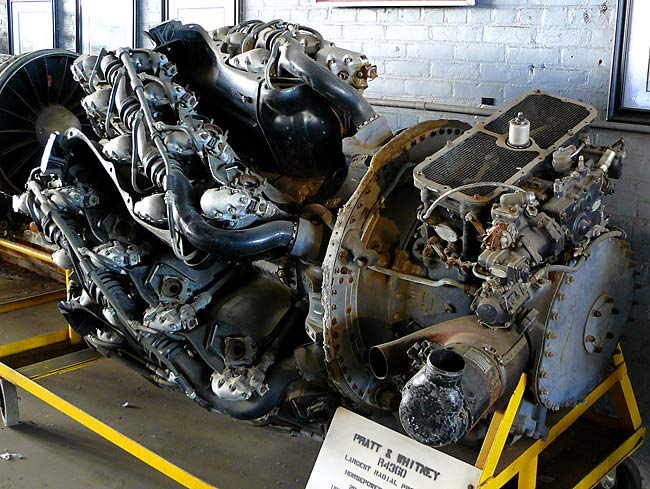

Pratt & Whitney R-4360 Wasp Major Radial Engine Specifications:

More Pratt & Whitney 28 Cylinder R-4360 Wasp Major Radial Engines at other Aviation Museums in the northeast
Another Pratt & Witney R-4360 Wasp Major Radial Engine at the Air Mobility command Museum in Dover, DE	A Pratt & Whitney R-4360 Wasp Major at the Mid Atlantic Air Museum in Reading, PA
A Pratt & Whitney R-4360 Wasp Major Radial Engine at the New England Air Museum	One more Pratt & Whitney R-2800 Wasp Major Radial Engine at the Berlin Airlift Historical Foundation at Floyd Bennett Field in Brooklyn, NY

Number of Cylinders: 28 cylinders, 4 rows of 7 cylinders, air cooled radial
Displacement: 4,362 ci
Bore: 5.75 inches
Stroke: 6.0 inches
Compression Ratio: 6.7:1
Fuel: 100/130 Octane Avgas
Aspiraton: Single Speed Supercharger
Weight: 3,700lbs
Length: 96 inches
Diameter: 55 inches
Output: 3,500hp at 2,700rpm with water injection
First Flight: 1931
Airframes used on: Convair B-36 Peacemaker, B-50 Superfortress, Vought F2G Corsair
Cost: $
